DAS/KDAS Hydraulic seals – Piston seals – Double acting compact seal

Short Description:

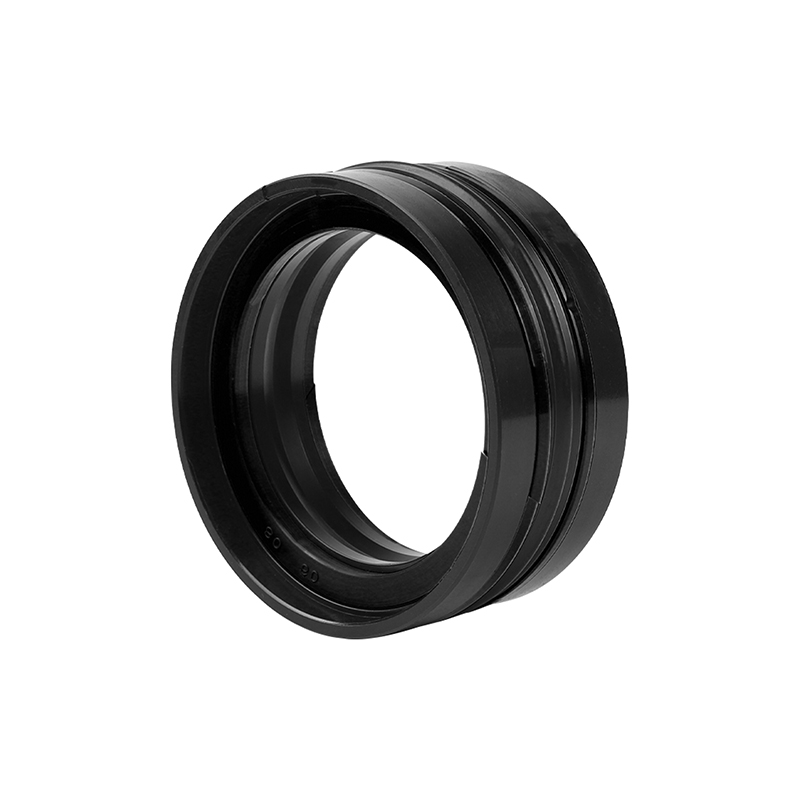

The DAS compact seal is a double acting seal, it is consisted from one NBR ring in the middle, two polyester elastomer back-up rings and two POM rings. The profile seal ring seals in both the static and dynamic range while the the back-up rings prevent extrusion into the sealing gap, the function of the of the guide ring is guiding the piston in the cylinder tube and absorbing the transverse forces.

Product Detail

Product Tags

Hydraulic seals - Piston seals - Double acting compact seal (1)
Hydraulic seals - Piston seals - Double acting compact seal (2)
Hydraulic seals - Piston seals - Double acting compact seal (3)

product description

This kind seal are self-acting double-acting seals. The radial forces acting on the elastic rubber sealing element after installation are superimposed by the system pressure. This results in a total sealing contact force which increases as the system pressure rises. Even when no system pressure is present, good sealing is achieved. A wide mounting surface also provides additional protection against shifting or twisting of the sealing element.

The DAS compact seal is used as a sealing element for pistons and hydraulic cylinders for reciprocating motion such as earth moving machines, hydraulic excavators, cranes, forklift trucks, hydraulic tailgates, agricultural machines, etc.


Profile seal: NBR
Back-up Ring: Polyester elastomer
Guide rings: POM

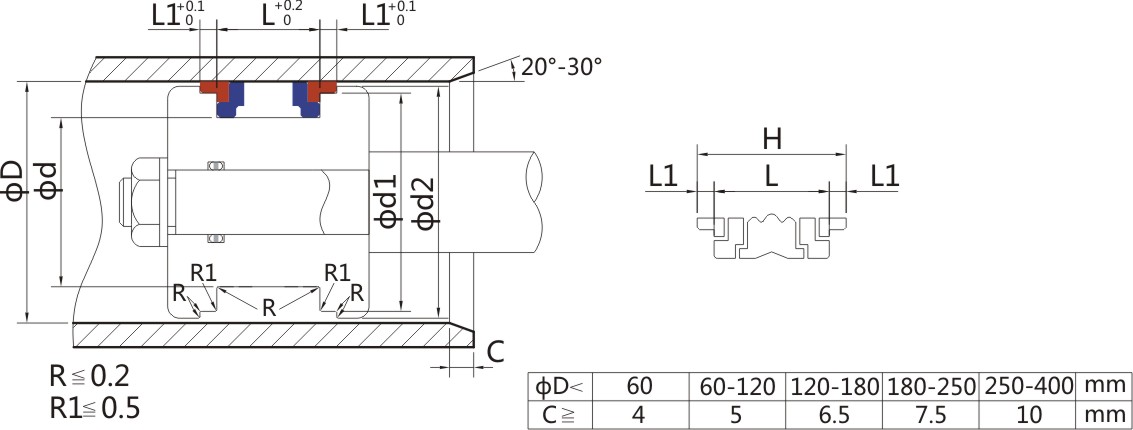

Technical Data

Operation conditions
Speed: Maximum reciprocating speed
Media: Mineral oil-based hydraulic fluids, flame retardant hydraulic fluids


-Good sealing effect
-Insensibility against shock loads and pressure peaks.
-High resistance against extrusion.
-Capable of installation in closed grooves for reduced
machining costs
- Economic sealing and guiding solution
- Easy installation.
- Closed groove, one piece piston
- Can be used to replace many other compact seal design

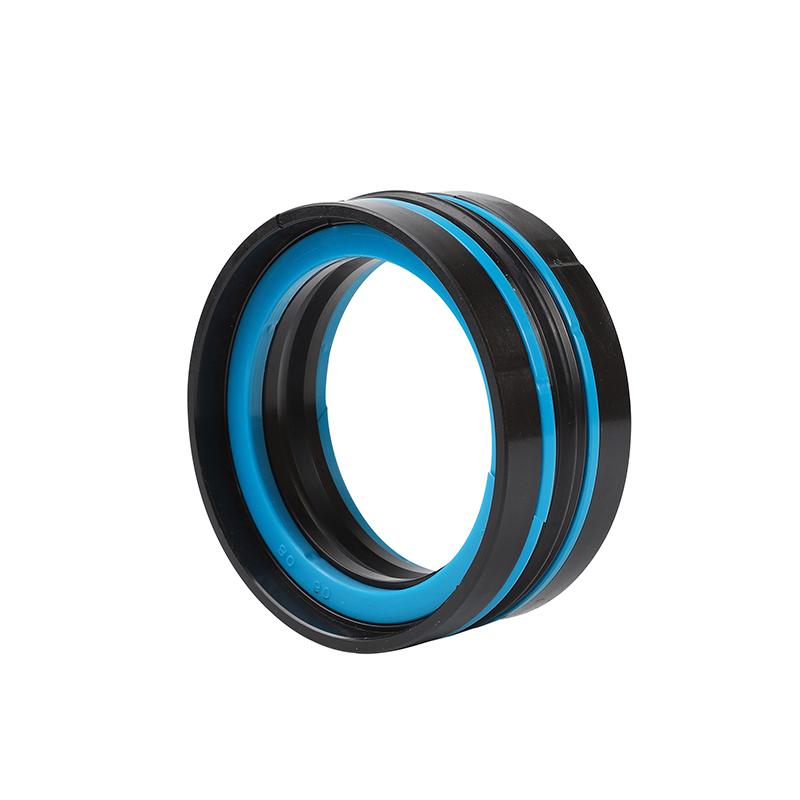

Another color of DAS compact seal:
