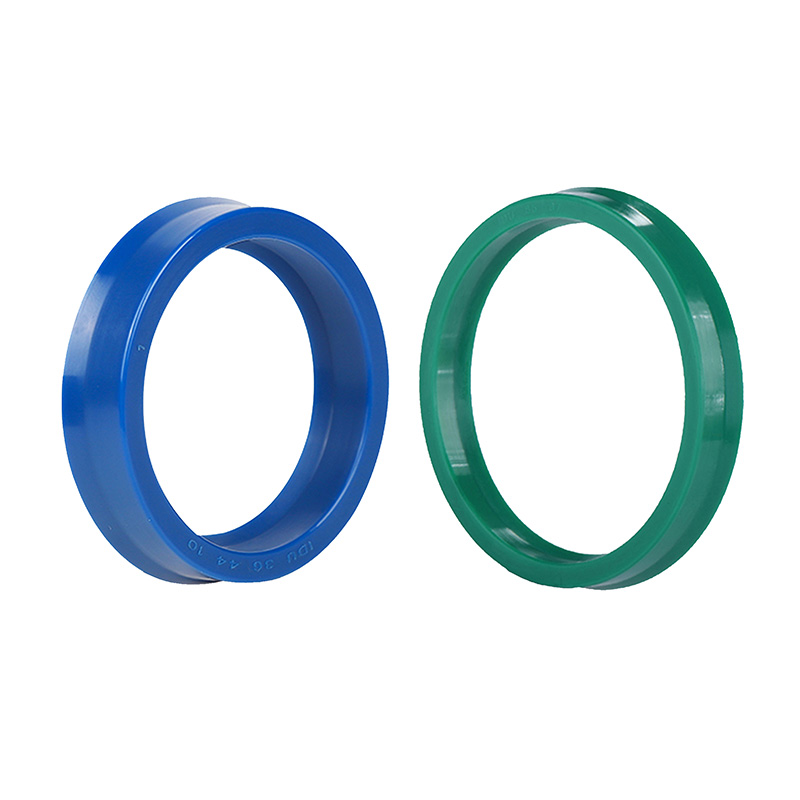

IDU Hydraulic Seals – Rod seals

Description

YX-d Rod Seal is the result of further development. It has two sealing lips and a strong anti-extrusion retaining ring. This additional lubrication is maintained in the sealing gap due to the action of the two sealing lips. (This greatly reduces dry friction and wear, thus extending the life of the seal.) Under certain conditions, satisfactory sealing performance can only be achieved by means of seals installed in their respective grooves one after the other. YX-d Rod Seal, a two-channel lip seal, can replace the expensive series device.

Above all, YX-d Rod Seal can be used in a variety of applications where the physical properties of ordinary rubber or fabric reinforced rubber are not met.

Polyurethane (PU) is a special material that offers the resilience of rubber combined with the toughness and durableness. It allows people to substitute rubber, plastic and metal with PU. Polyurethane can reduce factory maintenance and OEM product cost. Polyurethane has better abrasion and tear resistance than rubbers, and offering higher load bearing capacity.

Material

Material: TPU
Hardness:90-95 Shore A
Color: Light yellow, Blue, Green

Technical Data

Operation conditions
Pressure: ≤31.5 Mpa
Speed:≤0.5m/s
Media:Hydraulic oils (mineral oil-based)
Temperature:-35~+110℃

Advantages

-High resistance to high temperature.
-High abrasion resistance
-Low compression set.
-Suitable for the most severe working
conditions.
-Easy installation.
