DKBI Hydraulic Seals – Dust seals
Description

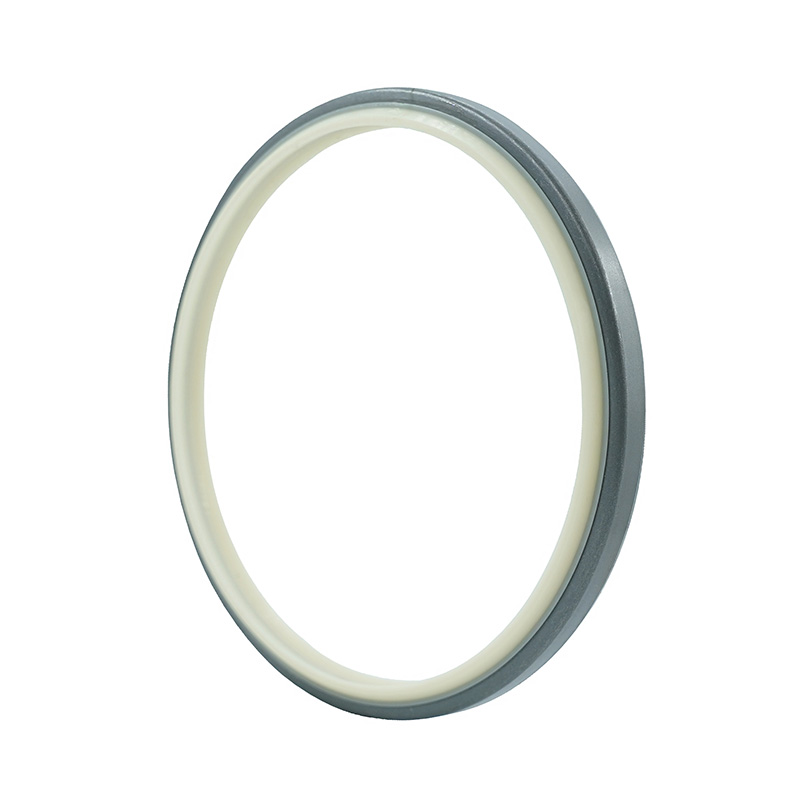

DKBI Wiper Seal is molded on the metal frame with NBR90 or PU, and it is tightly matched with the assembly hole. Besides, it has an excellent dust-proof sealing ability, can be waterproof and immersed, and has an inner lip to reduce oil film leakage. It is a dustproof high-reliability series sealing system. is molded on the metal frame with NBR90 or PU, and it is tightly matched with the assembly hole. Besides, it has an excellent dust-proof sealing ability, can be waterproof and immersed, and has an inner lip to reduce oil film leakage. It is a dust proof high-reliability series sealing system.
These are a common Wiper for Japanese earthmoving equipment, forklifts etc. These rod Wipers are moulded from Urethane and encased in a heavy duty metal case. This gives them exceptional abrasion resistance and outstanding endurance under difficult operating conditions. Highly effective in removing dirt and contaminants from the rod.
The wiper ring is for hydraulic cylinders and valves.DKBI have extreme wear resistance .Relative to its importance, the wiper seal is the most underrated seal in the hydraulic cylinder. The surrounding environment and service conditions must be taken into special consideration while choosing the wiper seal design. Various seal profiles of wipers include both single and double lip seals are available. The housing is kept open or closed depending upon both seal profiles and design specification. ROYAL has developed special seal design to operate in the harshest of environment. Special care should be taken while installing the wipers.DKBI is a wiper with a metal framework which usd in hydraulic applications to obstruct all kinds of negative foreign particles to go into the cylinders.
Standardized with the materials of high performance PU 93 shore A and Metal case.Double lip polyurethane dust seal prevents scraping off oil film.
Material
Material: PU Framework: Metal Clad
Hardness: 90-95 Shore A
Color: Blue / Light yellow
Technical Data
Operating conditions
Temperature range: -35 to +100℃
Media: Hydraulic oils (mineral oil-based)
Speed: ≤1m/s
Advantages
-High abrasion resistance.
-Widely applicable.Suitable for the most severe working conditions.
-Easy installation.
